High Line Enterprises is committed to providing their clients with the best possible services, which is achieved through layers of qualified supervision. We pride ourselves with old fashioned work ethics, premium selection of materials, and on-time project completion. This ensures our clients get the finest final product available. The premium value for new homes is guaranteed by using only the best subcontractors, including our in-house concrete, shotcrete, framing, stucco, rock, and cabinetry companies. These principles have become well-established at High Line Enterprises with our ever-growing list of clients who can attest their trust in our company and employees.
High Line Enterprises began offering the MAS™ system in Southern Utah in 2011 with plans to cover all of Utah in 2013. High Line Enterprises will be offering the MAS™ system in North Dakota in the 4th quarter of 2012. One of our best sellers is the Type G models which allow our customers to obtain a detached garage or shed quickly and far less expensively than metal buildings or traditional wood framed construction. We also offer the Type G for food storage and/or hardened disaster shelters. In 2012 we started offering turn key duplex apartment solutions for landlords based on both the MAS-570™ and MAS-1300™ systems. These apartments require virtually no maintenance and are highly resistant to tenant damage.
In 2013 we plan on introducing a four studio duplex model called the Henley-Garret™ which is based on the MAS-1300™ system. What makes the Henley-Garret™ unique is a common area loft accessible to each of the four 325 sq. ft. studio units to allow recreation, lounging, child play etc. by all residents in a shared, controlled and weather protected environment. “The Henley-Garrett is like having your own little New York penthouse with a covered roof gazebo for play … at a fraction of the cost”, said James Thorne from Utah Channel 3.
High Line Enterprises also has a fully trained staff of Foremen and Specialty Workers, some of which hold t5 (training) certification. High Line Enterprises is available to current or future MAS Distributors and Contractors for consultation. High Line Enterprises can help you to start using MAS™ systems, or help with existing projects in all 50 states and several international areas.
High Line Enterprises has MAS™ Forms, SPiFolding, Volumetric Mixer, Shotcrete Pump, Air Compressor, etc. that can be rented for use by qualified Contractors with or without operators.
High Line Enterprises, in coordination with local contractors, can also build MAS™ system models while providing the on the job training necessary to received certification for local contractors and personnel. These MAS™ models can be used as a showcase for local marketing and business development with a minimal capital outlay due to High Line Enterprises’ ownership of all necessary equipment and forms.
Please call us at (435) 865-5787 for more information or visit our website at www.highlineenterprises.com.
- MAS-570™ DUPLEX STUDIOS
- MAS-1300™ DUPLEX HOMES
High Line Enterprises has designed several duplex homes around the MAS™ system. The following brochure shows our most popular four duplex models:
- ORLANDO (2 Bedroom, 1 Bath)
- TOUCHSTONE (2 Bedroom, 1 Bath w/ Attached Garage)
- ROSALIND (2 Bedroom, 1 Bath w/ Loft & Attached Garage)
- SILVIUS (3 Bedroom, 2 Bath w/ Attached Garage)
- With optional interior concrete walls these duplexes make excellent & virtually damage proof rental units.
- With 18 foot high ceilings & dormers as standard, these units look and feel big and spacious.
- Contact High Line Enterprises TODAY to use a MAS™ system from one of our standard models or let us help you with a custom design. (435) 865-5787
Click on Brochure to OPEN
MAS™ and the MAS™ System are protected under several US & International Patents & Registrations. The rights to use such MAS™ System can only be licensed by Modern Arch Structures, LLC, All Rights Reserved.
- MAS-1300™ PANAMA MODEL DUPLEX HOMES
High Line Enterprises has designed a special “Panama” model duplex home around the MAS™ system. The following brochure shows this Panama duplex models:
- PANAMA #1 (2 Bedroom, NO Bath)
- PANAMA #2 (2 Bedroom, NO Bath w/ Loft)
- PANAMA #3 (2 Bedroom, 1 Bath w/ Kitchen)
- With optional interior concrete walls these duplexes make excellent & virtually damage proof rental units.
- With 18 foot high ceilings & dormers as standard, these units look and feel big and spacious.
- Contact High Line Enterprises TODAY to use a MAS™ system from one of our standard models or let us help you with a custom design. (435) 865-5787
Click on Brochure to OPEN
MAS™ and the MAS™ System are protected under several US & International Patents & Registrations. The rights to use such MAS™ System can only be licensed by Modern Arch Structures, LLC, All Rights Reserved.
- MAS-570™ Residential Models
High Line Enterprises has designed several residential homes around the MAS-570™ system. The following brochure shows our most popular six models:
- PHEBE (2 Bedroom, 1 Bath)
- CELIA (3 Bedroom, 2 Bath)
- OLIVER (2 Bedroom, 1 Bath)
- WILLIAM (2 Bedroom, Jack and Jill Bath, NO Kitchen)
- CHARLES (3 Bedroom, 1 Bath, NO Kitchen)
- WOOD (Kitchen & Bath, Open Living Space)
- With optional interior concrete walls these homes make excellent long lasting and damage proof residences.
- With 12 foot high ceilings & dormers as standard, these units look and feel big and spacious.
- The “Wood” model provides a kitchen and bathroom but NO other permanent interior partitions. Great for use of movable self standing partitions or high capacity occupancy.
- Contact High Line Enterprises TODAY to use a MAS™ system from one of our standard models or let us help you with a custom design. (435) 865-5787
Click on Brochure to OPEN
MAS™ and the MAS™ System are protected under several US & International Patents & Registrations. The rights to use such MAS™ System can only be licensed by Modern Arch Structures, LLC, All Rights Reserved.
- MAS-1300™ Residential Models
High Line Enterprises has designed several residential 1,300 sq. ft. homes around the MAS™ system. The following brochure shows our most popular seven residential models:
- ALIENA (2 Bedroom, 2 Bath)
- AUDREY (3 Bedroom, 2 Bath)
- ISABELLA (4 Bedroom, 1 Bath)
- CORIN (2 Bedroom, 2 Bath w/ Loft)
- MARTEX (3 Bedroom, 2 Bath w/ Loft)
- MARIANA (5 Bedroom, 3 Bath)
- OLIVIA (3 Bedroom, 2 Bath w/ Garage)
- With optional interior concrete walls these homes make excellent long lasting and damage proof residences.
- With 18 foot high ceilings & dormers as standard, these units look and feel big and spacious.
- Contact High Line Enterprises TODAY to use a MAS™ system from one of our standard models or let us help you with a custom design. (435) 865-5787
Click on Brochure to OPEN
MAS™ and the MAS™ System are protected under several US & International Patents & Registrations. The rights to use such MAS™ System can only be licensed by Modern Arch Structures, LLC, All Rights Reserved.
The MAS-™ system allows the combination of MAS-570™ to MAS-570™, MAS-1300™ to MAS-1300™ and MAS-570™ to MAS-1300™. Several units can be combined to form larger floor plans, duplex units, or apartments.
- MAS-570™ MULTI UNIT MODELS (DUPLEX, TRIPLEX & FOURPLEX)
High Line Enterprises has designed several multi unit homes around the MAS™ system. The following brochure shows our most popular four multi unit models:
- PHEBE DUPLEX (2 Bedroom, 1 Bath)
- PHEBE TRIPLEX (2 Bedroom, 1 Bath)
- CELIA FOURPLEX (3 Bedroom, 2 Bath)
- OLIVER DUPLEX (2 Bedroom, 1 Bath)
- By combining two or more MAS™ units, it is possible to create a duplex, triplex, or fourplex and the solution is very cost effective, architecturally pleasing, and quick to build.
- With optional interior concrete walls these duplexes make excellent & virtually damage proof rental units.
- With 18 foot high ceilings & dormers as standard, these units look and feel big and spacious.
- Contact High Line Enterprises TODAY to use a MAS™ system from one of our standard models or let us help you with a custom design. (435) 865-5787
Click on Brochure to OPEN
MAS™ and the MAS™ System are protected under several US & International Patents & Registrations. The rights to use such MAS™ System can only be licensed by Modern Arch Structures, LLC, All Rights Reserved.
- Dual MAS-1300G™ Units
High Line Enterprises has designed several larger homes based around the connection of one or more MAS units. The following brochure shows a 2,700 sq. ft. home created by attaching two MAS-1300G type models. This home 5 bedroom, 3.5 bath home with Den/Office (or 6th bedroom) as the following features:
- 1 Master bedroom with bathroom
- 2nd Master bedroom with bathroom and large walk in closet
- 3 oversized Bedrooms
- Family area open to dining and kitchen area
- Private living room area
- Den/office which could be 6th bedroom
- Laundry Room
- By combining two or more MAS™ units, it is possible to create a very cost effective large home that is architecturally pleasing, and quick to build.
- With 18 foot high ceilings & dormers as standard, these units look and feel big and spacious.
- Contact High Line Enterprises TODAY to use a MAS™ system from one of our standard models or let us help you with a custom design. (435) 865-5787
Click on Brochure to OPEN
MAS™ and the MAS™ System are protected under several US & International Patents & Registrations. The rights to use such MAS™ System can only be licensed by Modern Arch Structures, LLC, All Rights Reserved.
- MAS™ Type G (Garage) Models
High Line Enterprises has designed several garage solutions around the MAS™ system. The following brochure shows our most popular five garage models:
- MAS-1300™ Type G (Open Garage)
- MAS-1300™ Type G (Garage w/ Living Quarters)
- MAS-1300™ Type G (Open Garage w/ Double Doors)
- MAS-570™ Type G (Open Garage)
- MAS-570™ Type G (Open Garage w/ Double Doors)
- With a 24′ or 36′ clear span and one or more large garage door openings, these Type G (Garage) models make excellent store fronts, auxiliary garages, warehouses, equipment storage units, industrial storage units, motor home or boat parking shelters, etc.
- They also make excellent residential garage additions to the MAS-570™ & MAS-1300™ Type R (Residential) homes.
- Contact High Line Enterprises TODAY to use a MAS™ system from one of our standard models or let us help you with a custom design. (435) 865-5787
Click on Brochure to OPEN
MAS™ and the MAS™ System are protected under several US & International Patents & Registrations. The rights to use such MAS™ System can only be licensed by Modern Arch Structures, LLC, All Rights Reserved.
- Photos of MAS-1300™ G Type, Layer 1 & Layer 2 Shotcrete Complete, Removing Forms & Stamping Exterior
These are photos of a MAS-1300™ G Type. This unit was built in freezing temperatures by High Line Enterprises, Inc., one of the first MAS Distributors to complete certification from MAS™. The new SPiFolding tenting system allows a MAS™ structure to be completely covered and heated or protected from the sun. In this case dual propane heaters were used and construction continued without stop in snow and 60 plus mile per hour winds while temperatures under the tenting system remained in the high 60’s (F).
MAS-1300™ interior looking up at crown after air form deflation (post concrete cure) (Day 5)
MAS-1300™ interior 2 minutes after air form deflation (post concrete cure) (Day 5)
MAS™ System construction in below zero weather in “off grid” area, using MAS™ SPiFolding tenting system.
MAS™ SPiFoilding optional tenting system brace accessory of use of tent in hot or cold weather to obtain proper cure.
MAS-1300™ interior corner cube form just before removal, 5 minutes after air form deflation (Day 5)
MAS-1300™ start of exterior stamping on corner wall using “slate pattern” flat stamp with feathered edges (Day 5)
MAS™ corner cage from roofing section staged for installation.
MAS-1300™ after shotcrete layer 2 looking up at SPiFolding Apex Ring
MAS™ window foam “block out” located on the side wall of corner cube form, interior view

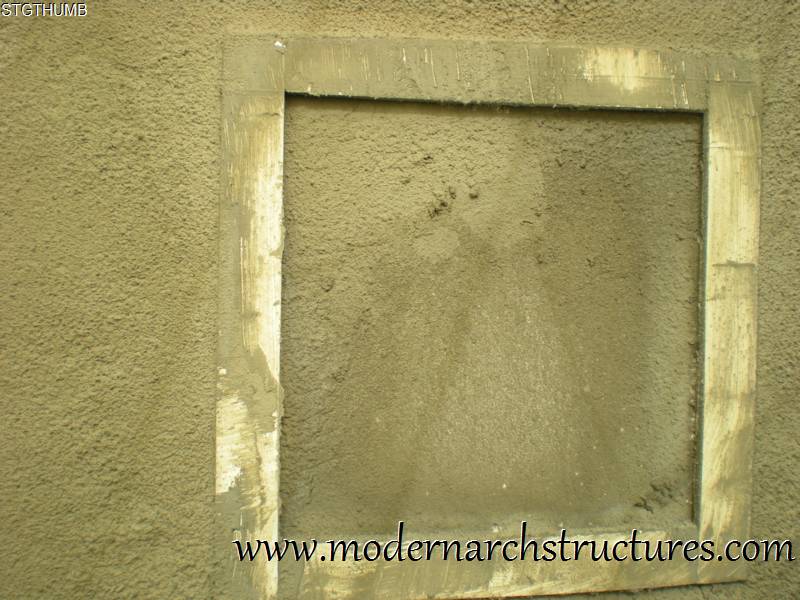

MAS™ window foam “block out” located on side wall of corner cube form, exterior view
MAS-1300™ Type G interior view of Type G garage cage form looking out (where overhead garage door will be installed)
MAS-1300™ interior view of inflated air from showing “manifold blower input” tube (air enters this tube to inflate air form and hold pressure at 5″ of water column pressure)
MAS™ job site showing Foreman holding two concrete cylinder samples that will be sent to a lab to test concrete mix

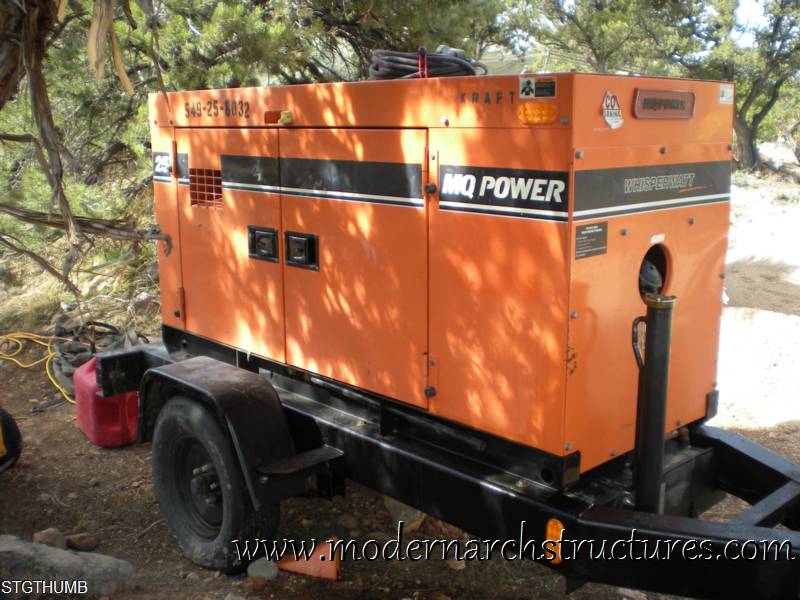

MAS™ construction site generator used when building a large number of MAS™ structures at a time. Dual generators required for fan blower safety
MAS™ construction site showing two workers removing the wood type manifold box from the air form after concrete has cured the length of time specified by engineering.
MAS-1300™ cage form pin removal to collapse cage form for removal post shotcrete cure (Day 5)

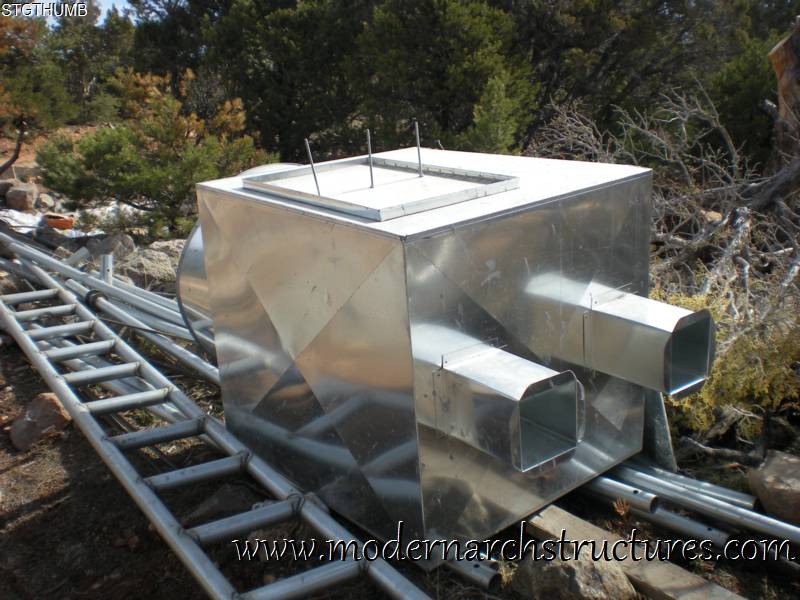

MAS™ metal air form inflation manifold system (also available in wood)
MAS-1300™ Type G man door on side of garage (formed in foam)
MAS-1300™ Type G view from outside through Type G cage form showing air form deflation and gravity “pull away” from cured shotcrete (Day 5)
- Photos of MAS-570™ R Type Construction, in Utah Desert
These are photos of a MAS-570™ R Type. This unit was built in a Utah Desert area using a Hydronic Floor heating system powered by a natural hot spring. The exterior of this unit uses a mosaic stamped pattern on the top and a “Faux Rock” Waynes Coating on the bottom.

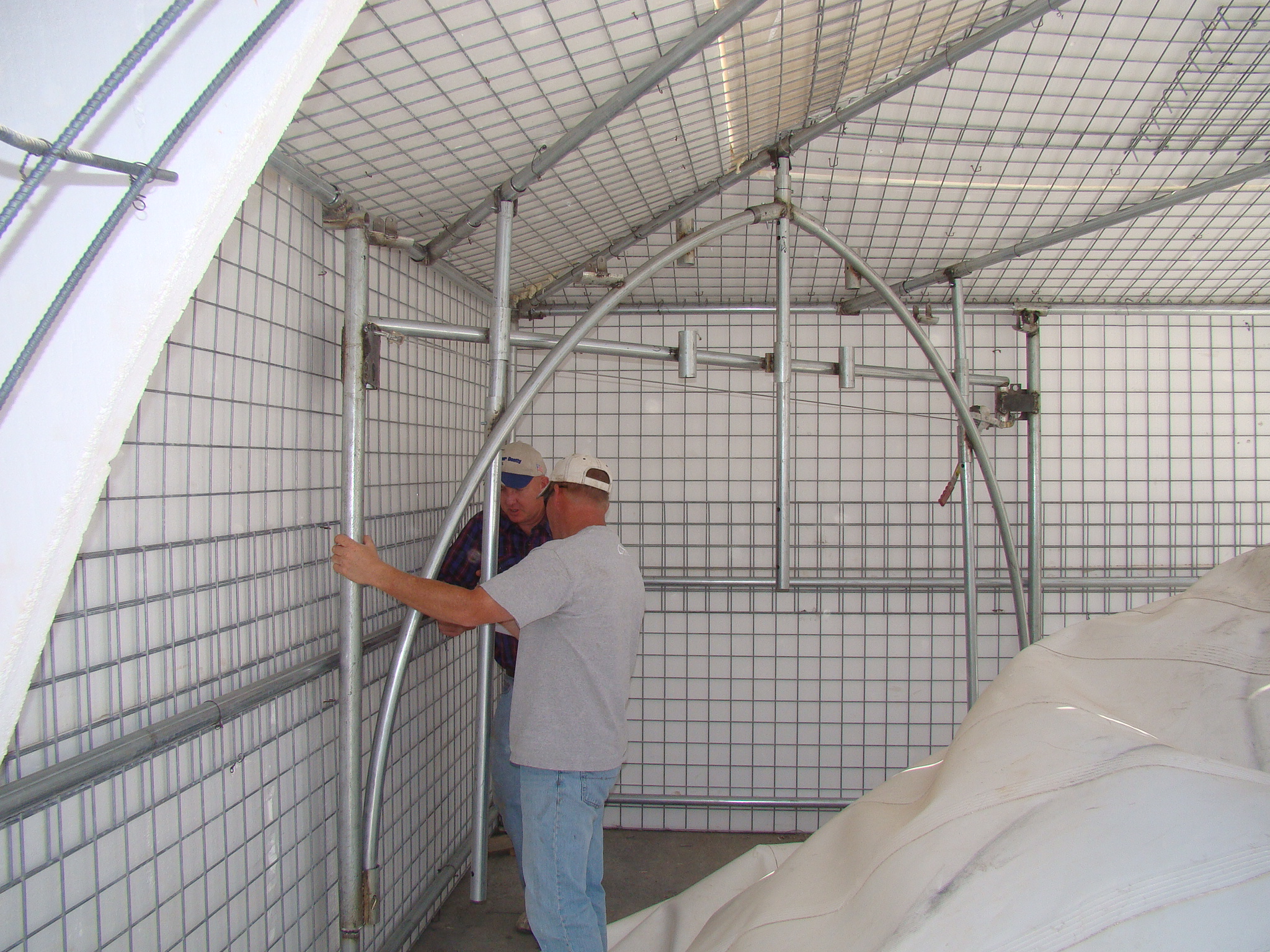

MAS-570™ Type R interior view of the corner form during adjustment.
MAS-570™ Type R exterior view looking at front door during re-bar inspection by Foreman.
MAS-570™ Type R exterior view showing front entry door and window block on right side.

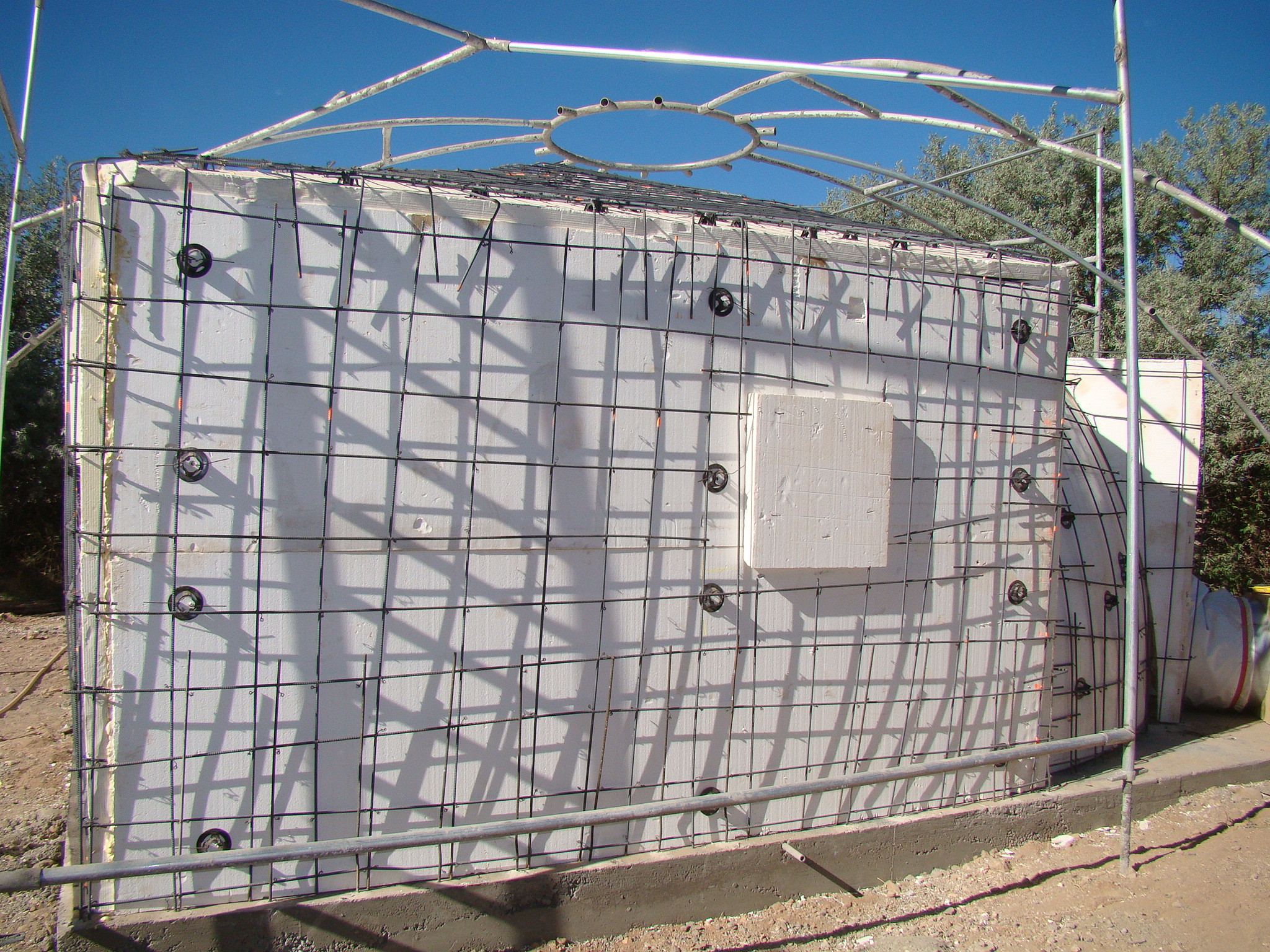

MAS-570™ Type R exterior view during re-bar installation showing window block.

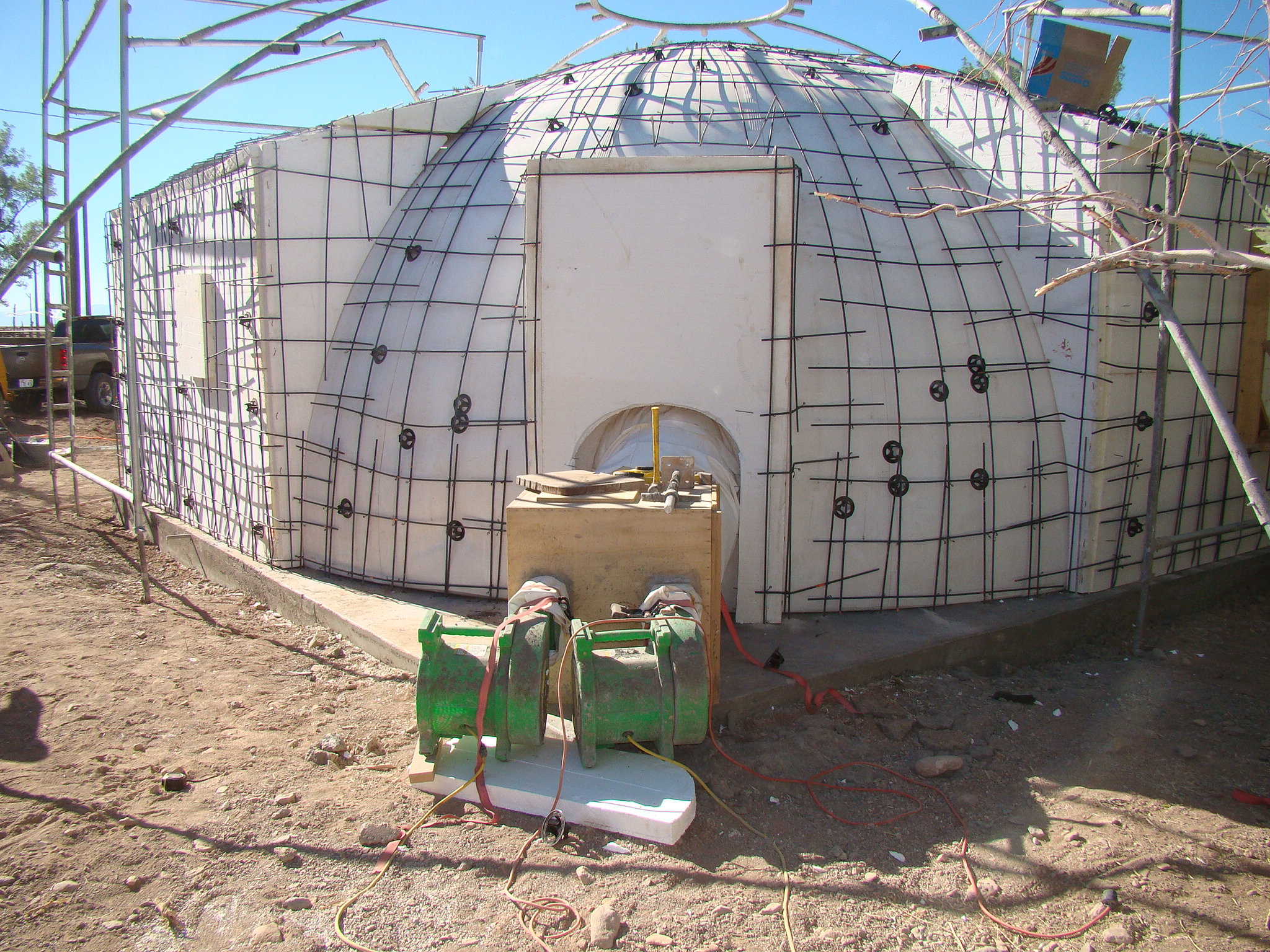

MAS-570™ Type R view of dual fan/manifold system each powered by separate power source to avoid a catastrophic failure should power be lost during shotcrete application.

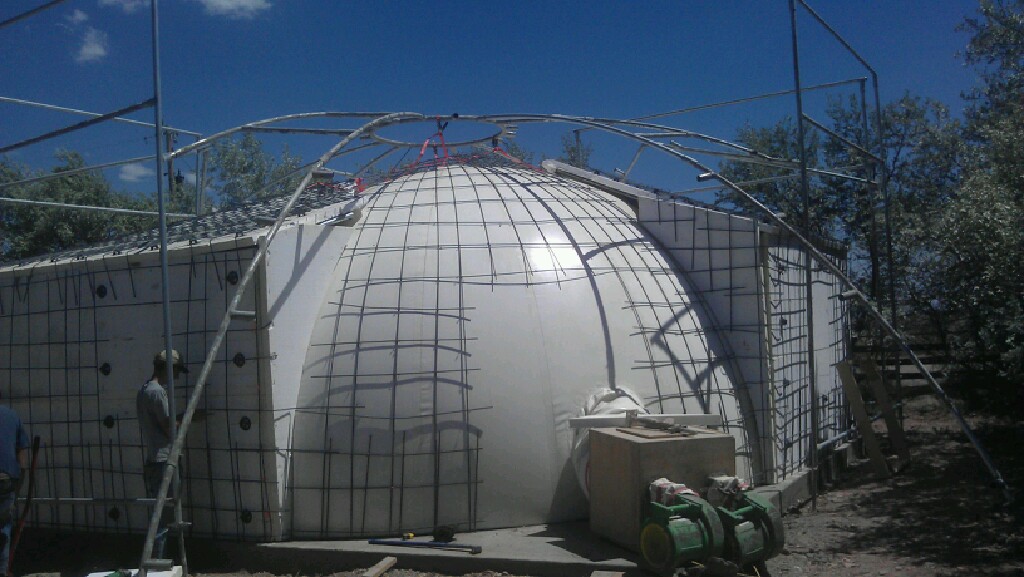

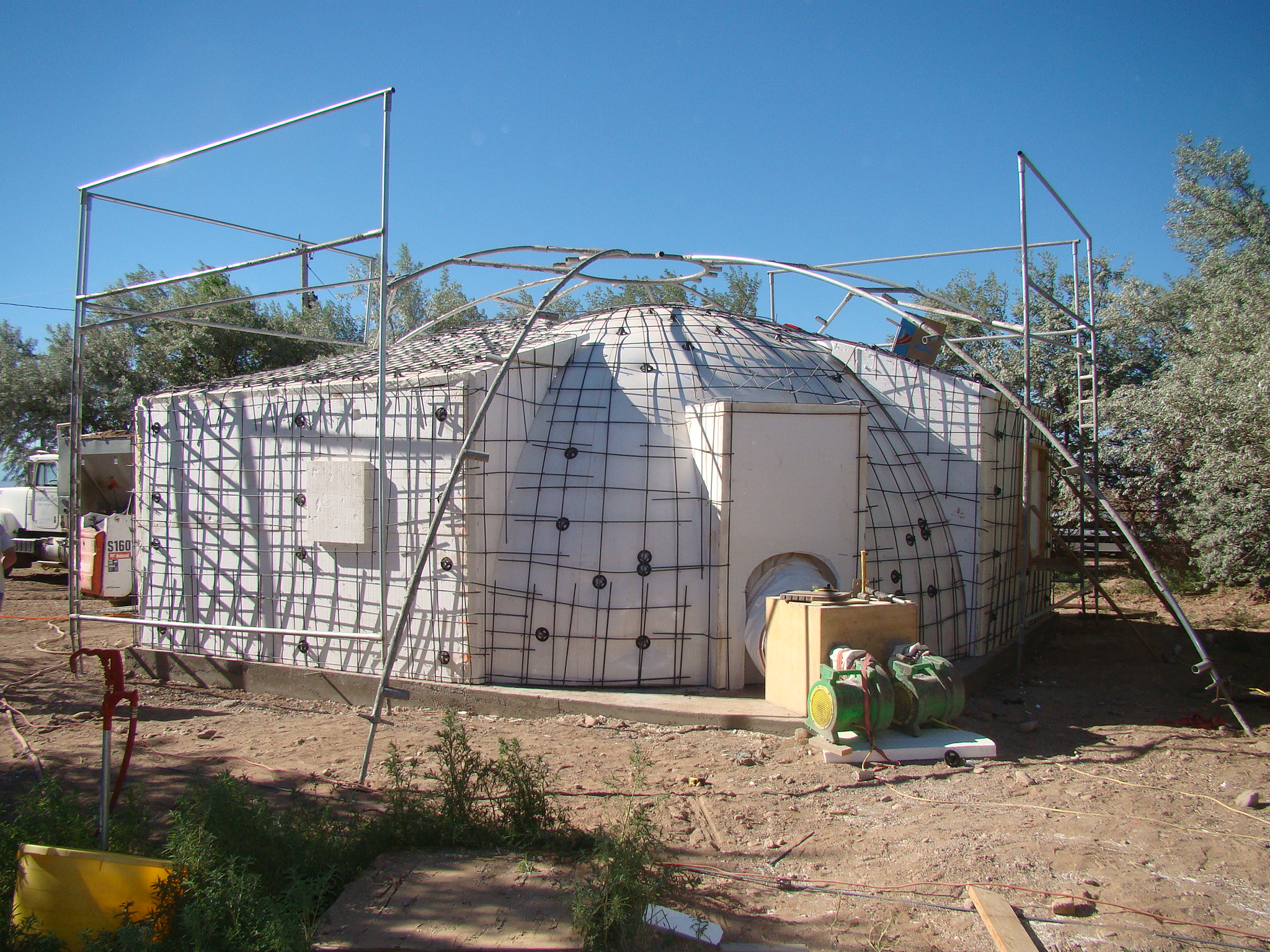

MAS-570™ Type R exterior view showing entire structure with re-bar, airform inflated by dual fan manifold system, and in final stages of inspection in preparation for shotcrete application.

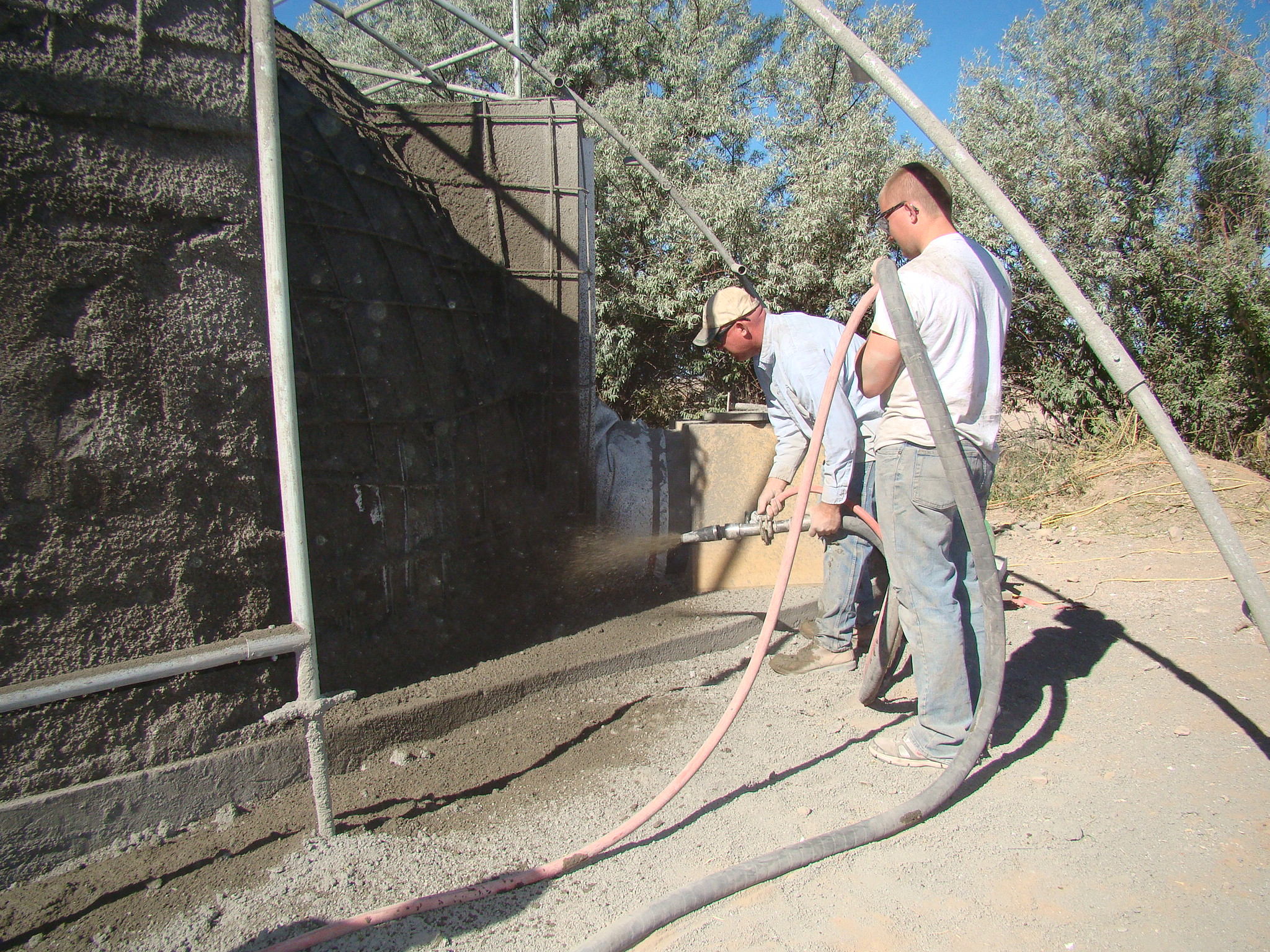

MAS-570™ Type R shotcrete application. Notice “nozzle man” is assisted by “hose man” who is responsible for dragging hose.
MAS-570™ Type R shotcrete application showing window block out detail and clear side area afforded by SPiFolding design. This clear side area facilitates shotcrete application and final finish by minimizing any obstructions.

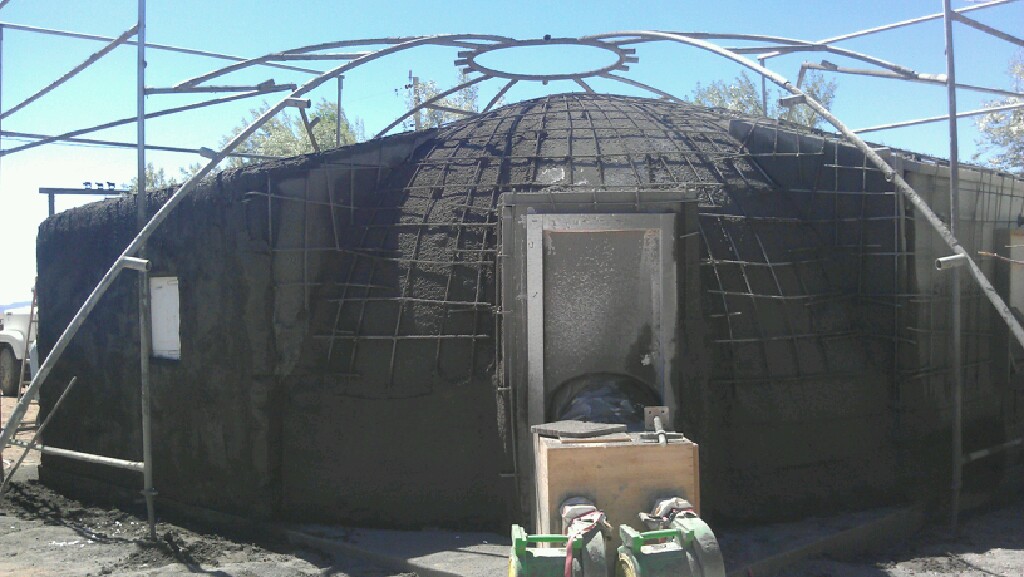

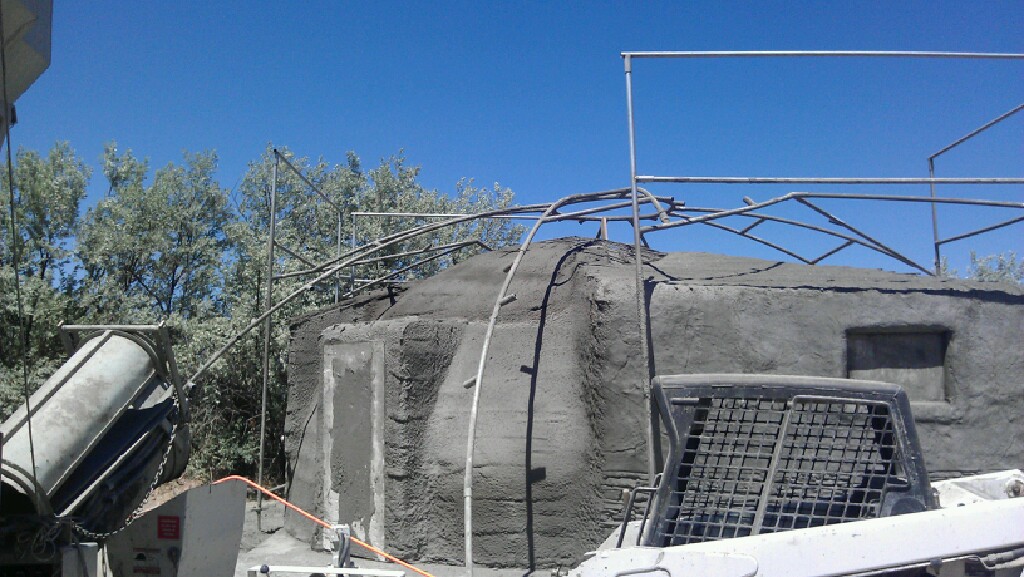

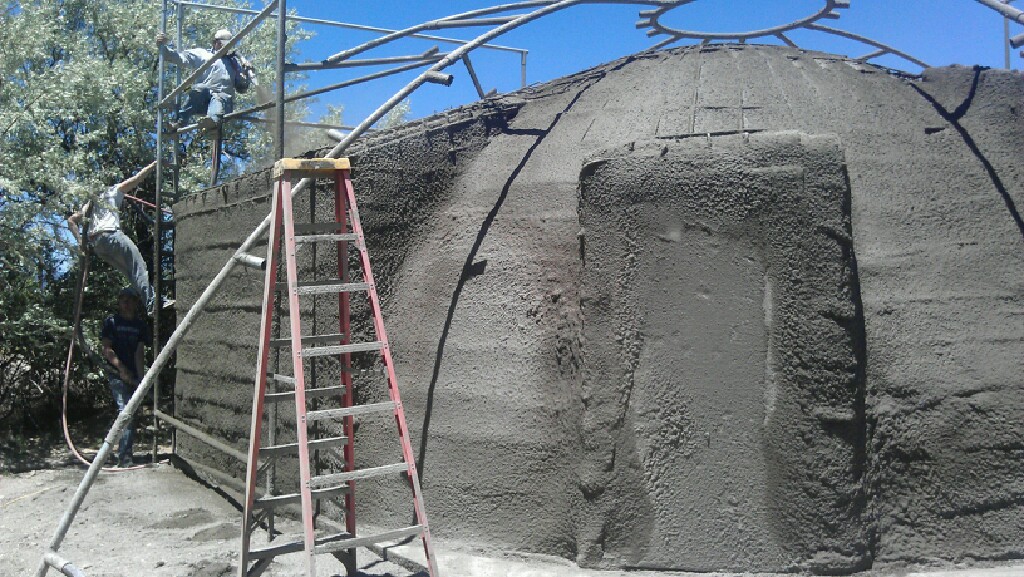

MAS-570™ Type R exterior view showing completed first layer of shotcrete and ready for final layer that will be finished by stamping and faux rock application.
MAS-570™ Type R exterior view showing how dual fan manifold system is “plumbed” through the exterior door area to inflate the airform. The dual fan manifold system has a access hatch allowing persons to enter/exit the interior of the airform should adjustment of the tie down ring become necessary.

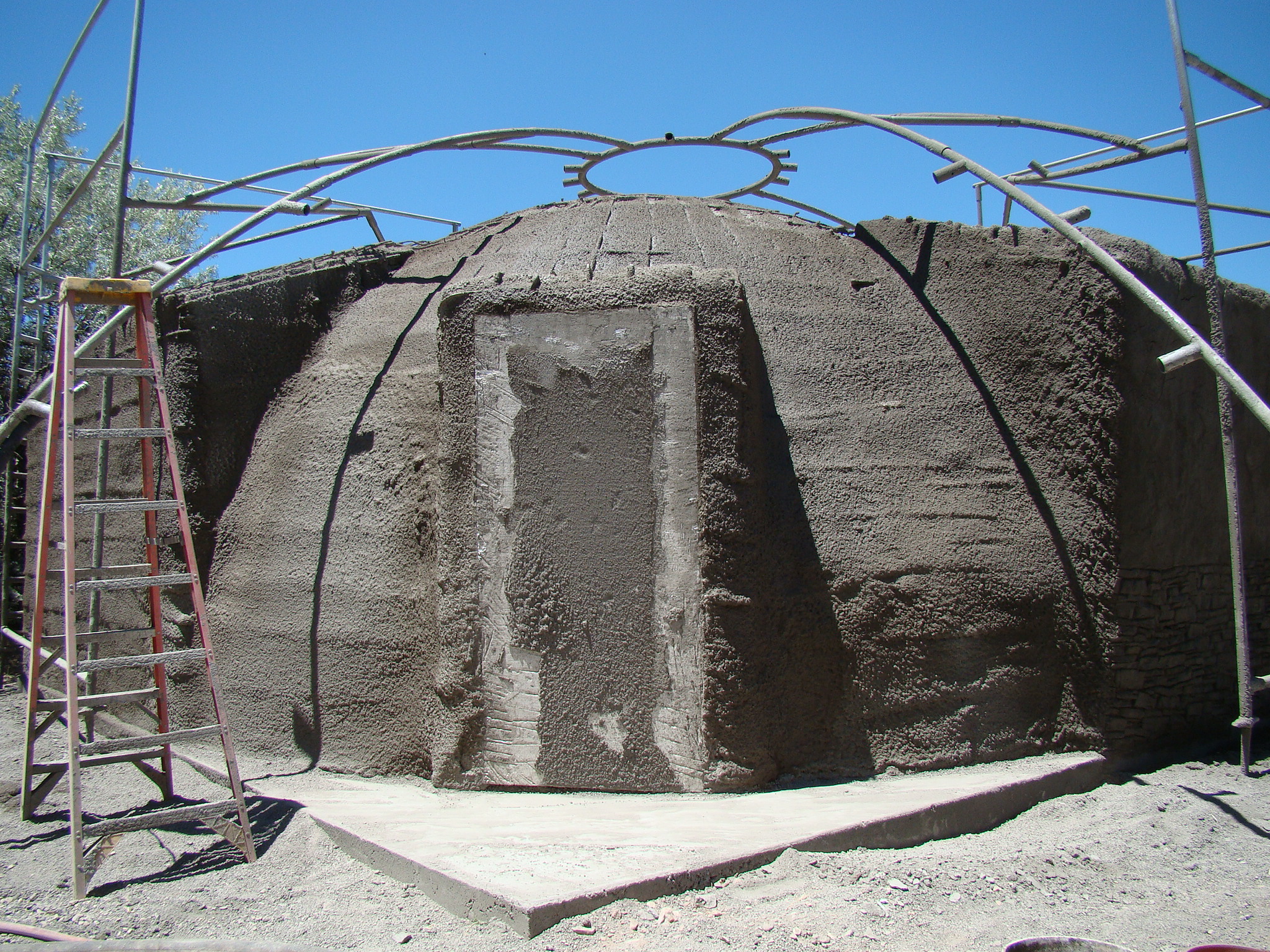

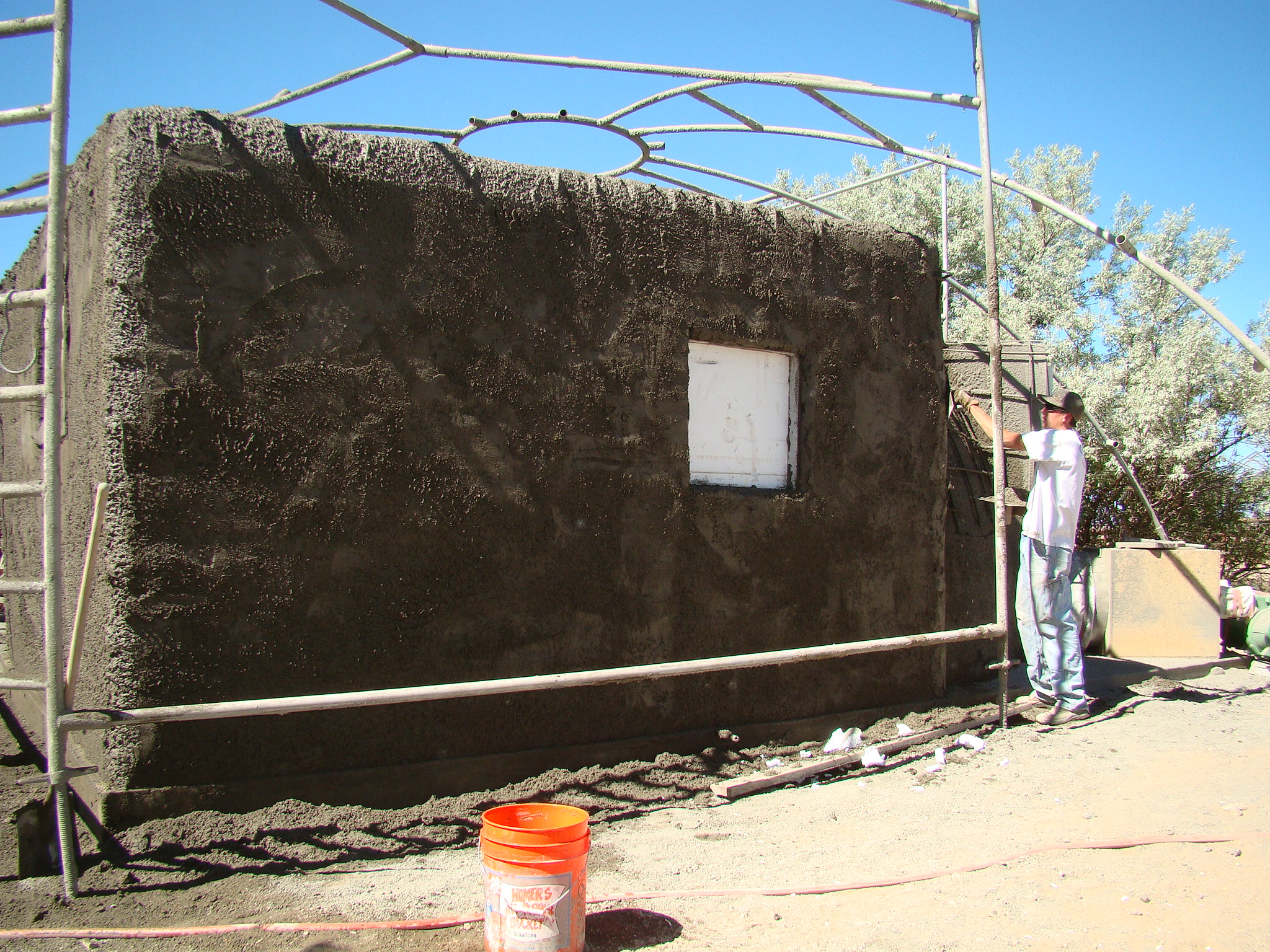

MAS-570™ Type R exterior view of the pre-finish layer of shotcrete (layer 1) showing the entry door and the triangle shaped portion of the pad that remains in a the MAS-570™ Type R configuration. With front an back doors, this pad area is used as an entry/exit porch.

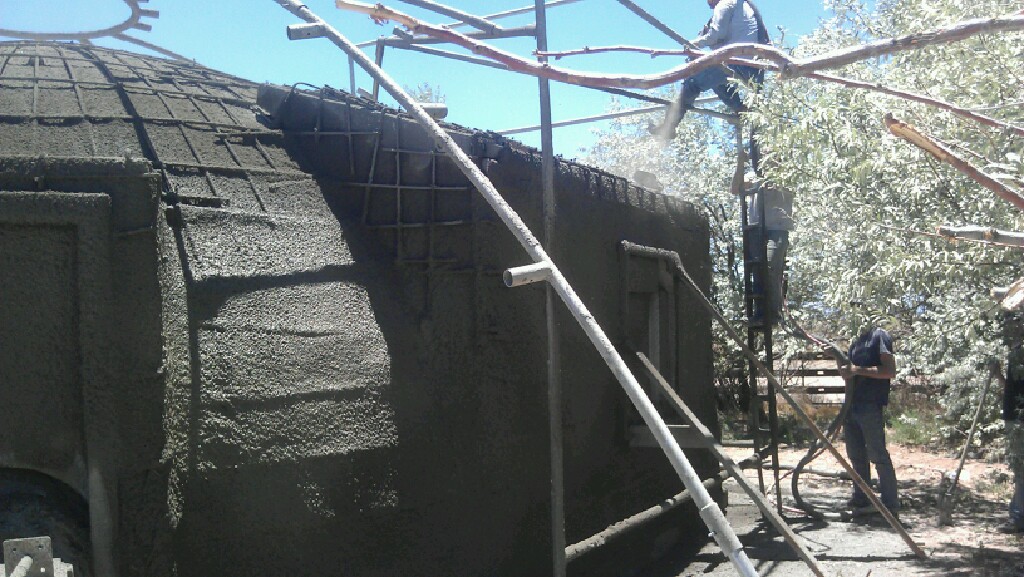

MAS-570™ Type R shotcrete application showing the use of the SPiFolding™ system by the nozzle man and helpers.

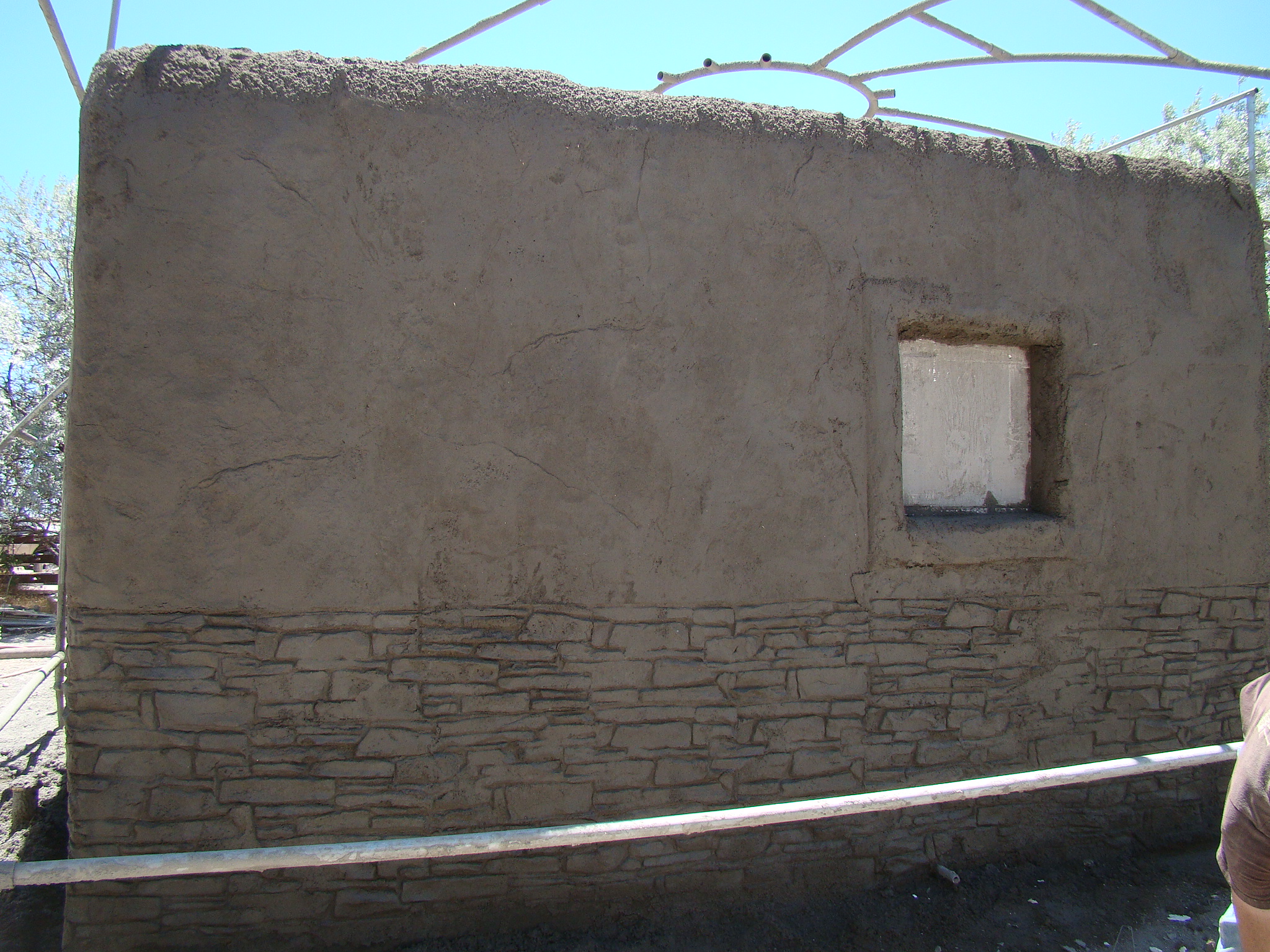

MAS-570™ Type R view of exterior finish being applied by stamping and faux rock look by freehand.
MAS-570™ Type R exterior view looking at SPiFolding™ fit around exterior door.

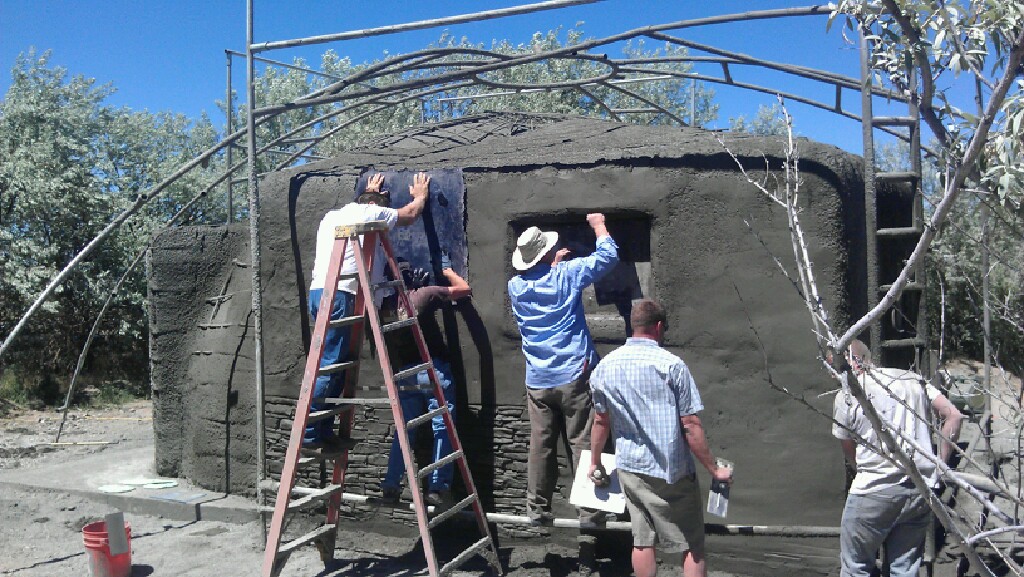

MAS-570™ Type R view of workers hand stamping the exterior with concrete stamp above start of waynes coating faux rock application (drawn in concrete by hand).

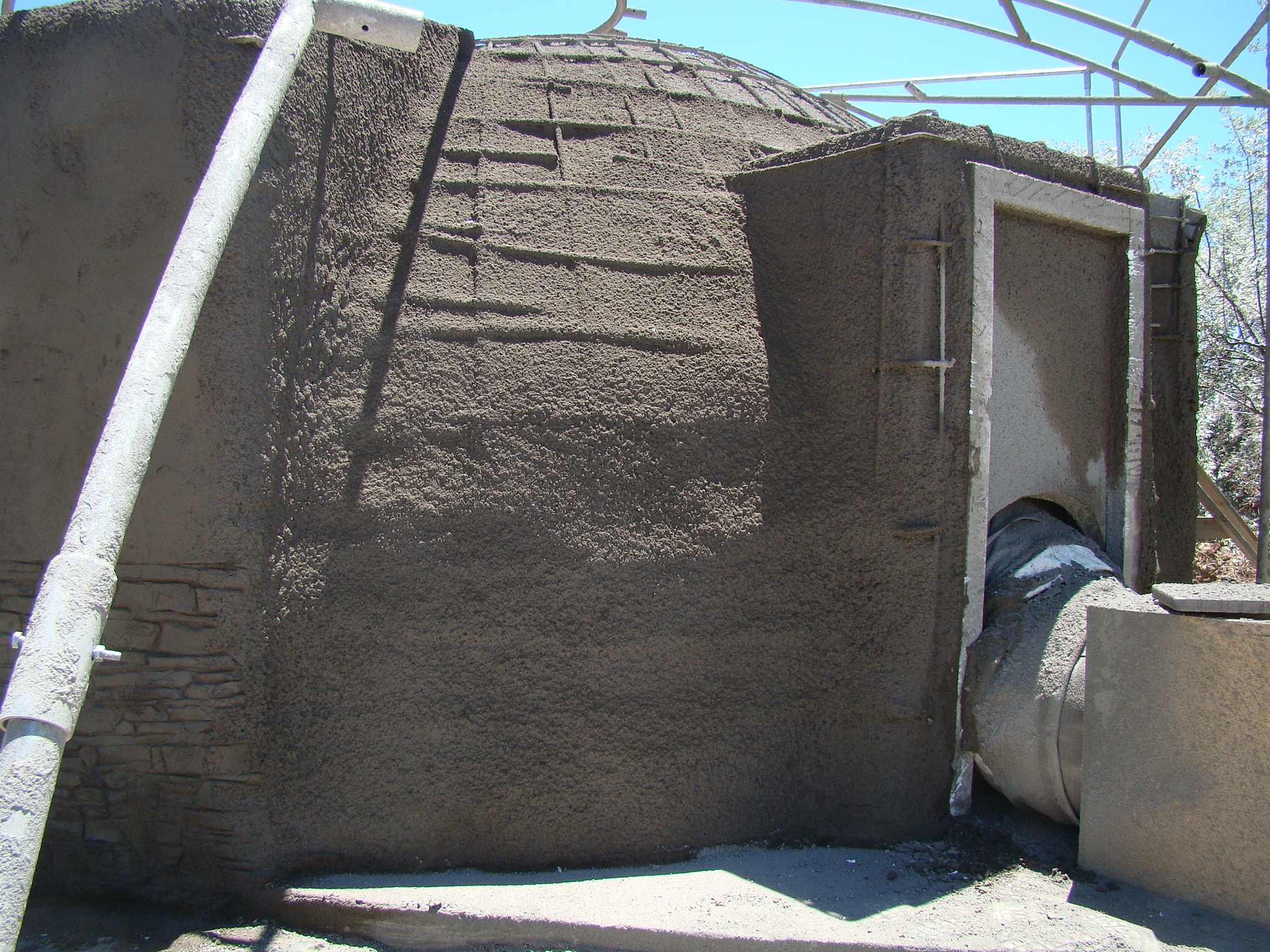

MAS-570™ Type R exterior view showing dual manifold fan system going through exterior door with first coat of shotcrete applied and SPiFolding™ system clearly visible.

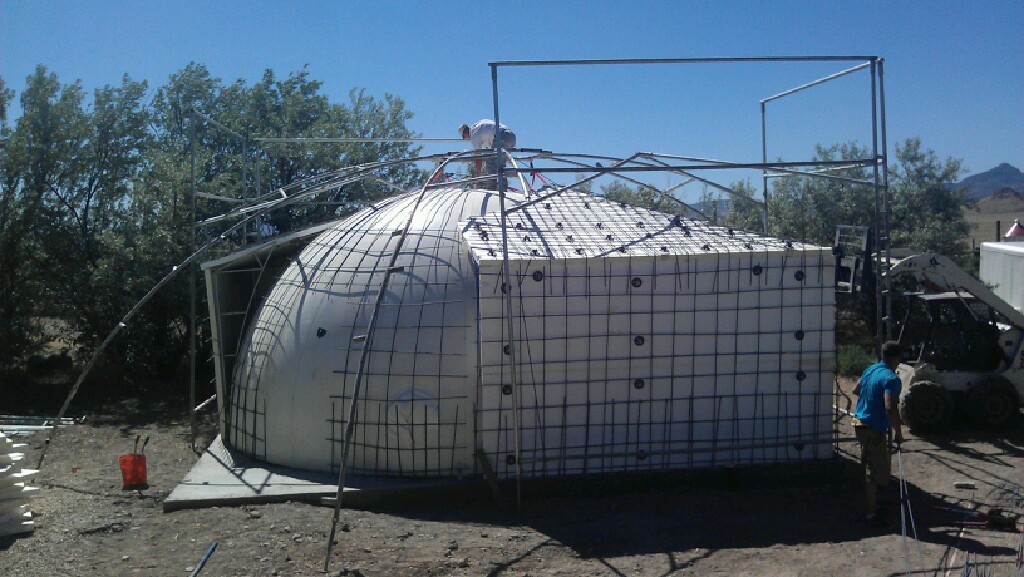

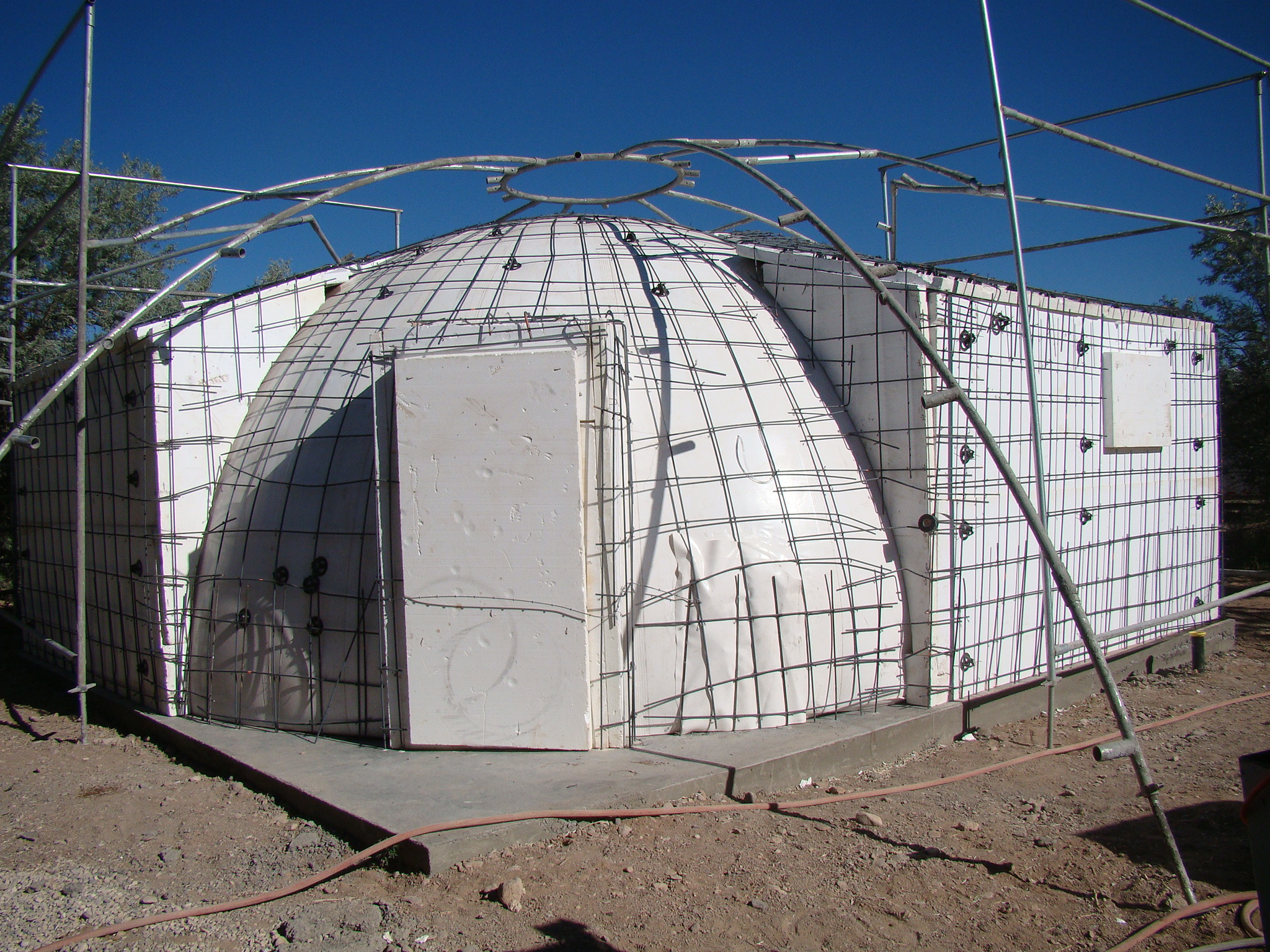

MAS-570™ Type R final re-bar installation shown at a distance to demonstrate how the SPiFolding™ system encases the structure WITHOUT any interference during construction.

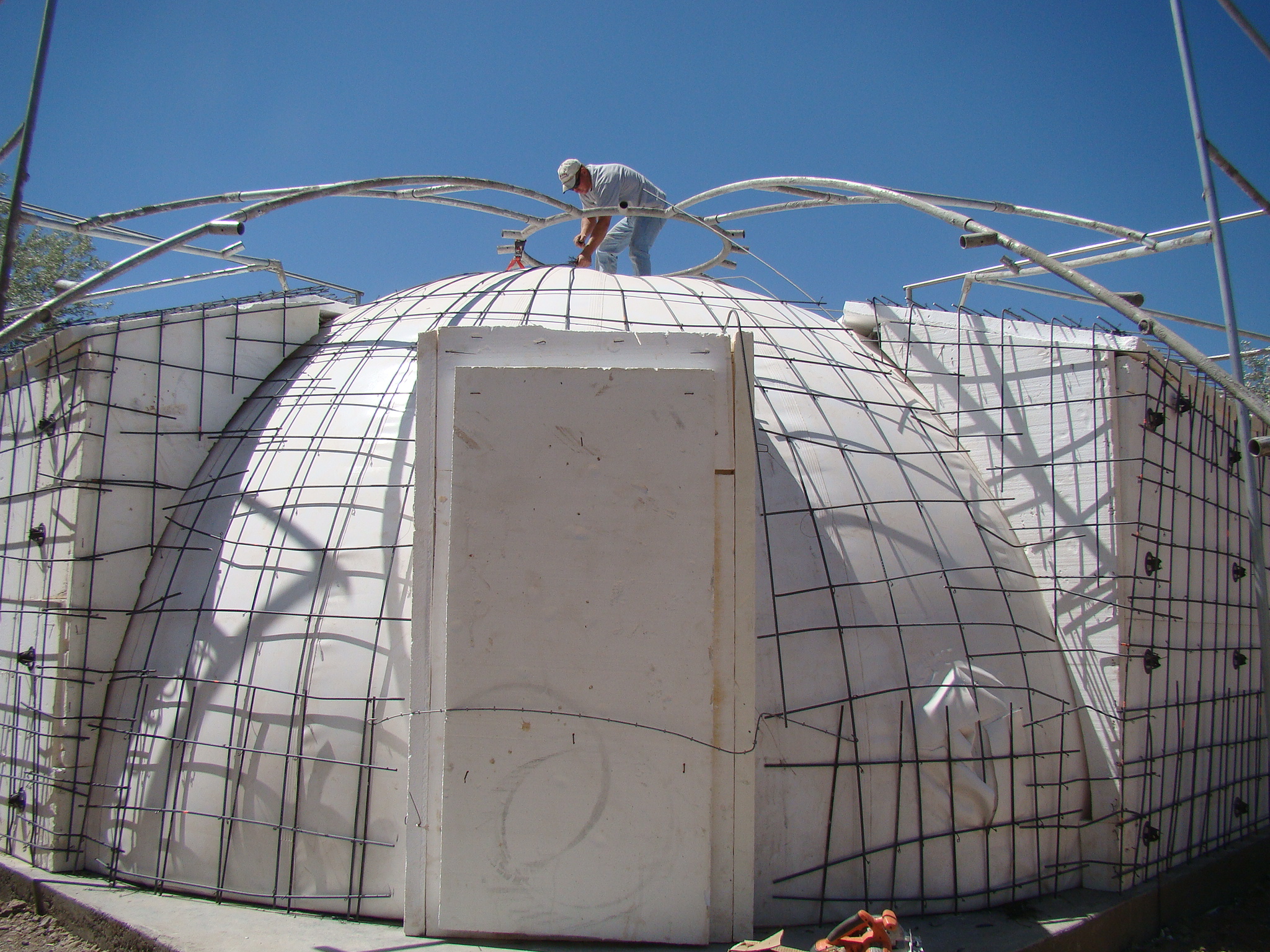

MAS-570™ Type R re-bar installation during construction, showing the final tying of the re-bar and the re-bar “stand offs” that keep the re-bar at the proper distance from the airform as required by engineering.

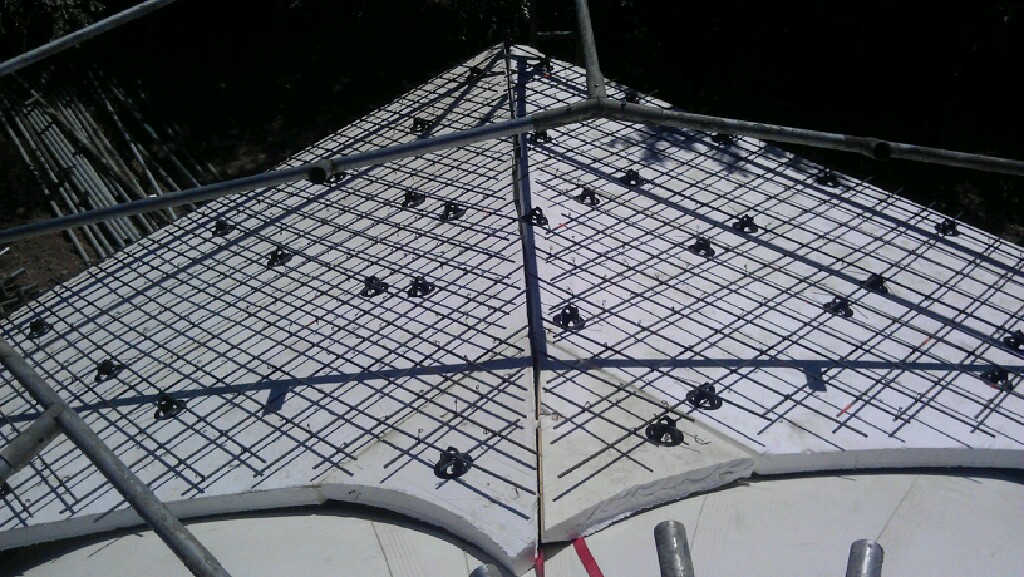

MAS-570™ Type R corner roof view of re-bar grid and re-bar “stand off” placement. Pay particular attention to the interface between this corner cube form section and the inflatable air form seen at the lower portion of the photo.

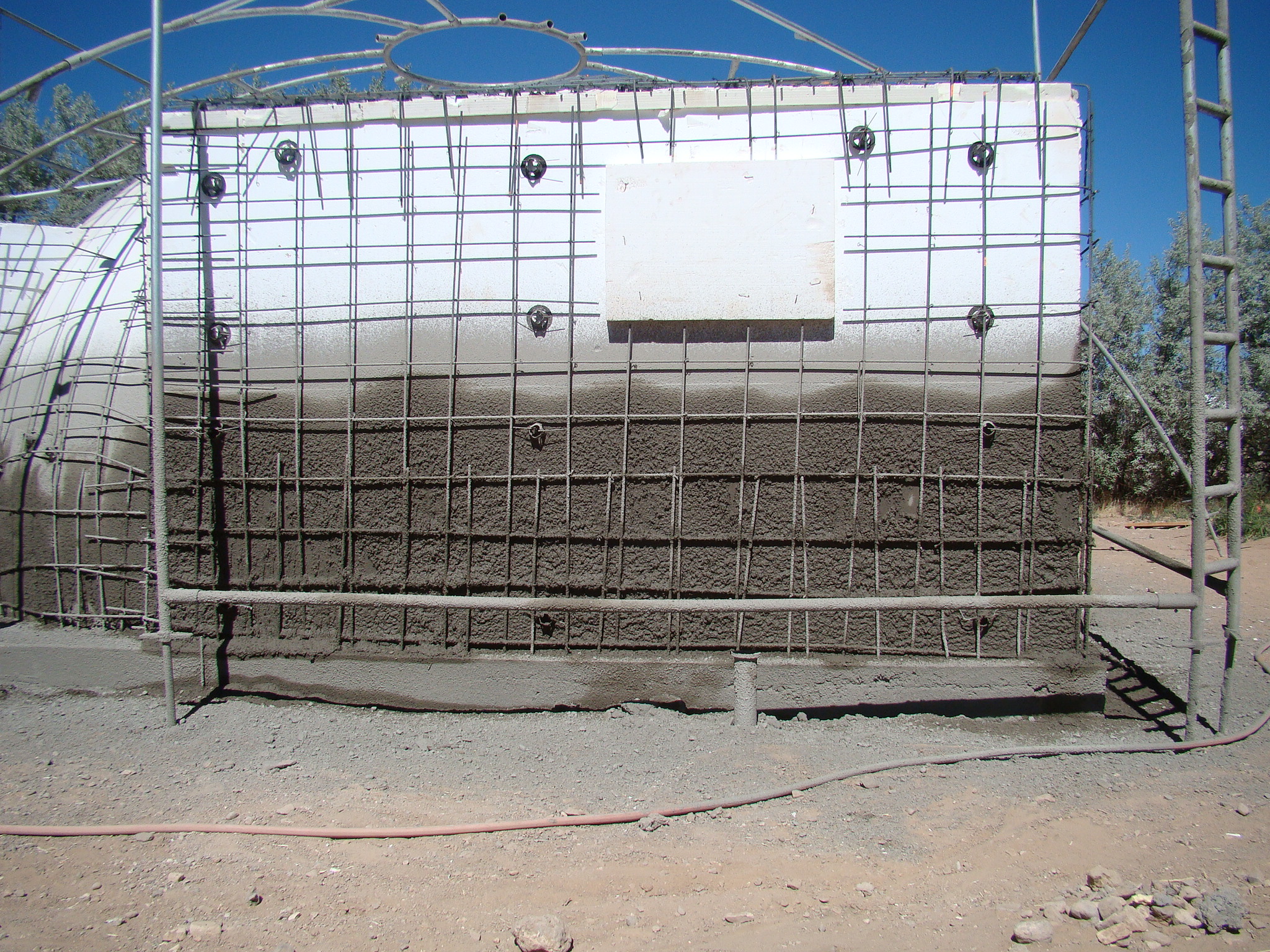

MAS-570™ Type R this view demonstrates the technique of a thin layer on the vertical cube sections. This layer is applied quickly and allowed to set for a short period to allow the heavy first layer of shotcrete to be built vertically on this corner section without sliding off. The Specialty Worker training classes offered by MAS™ give more detail on such techniques.

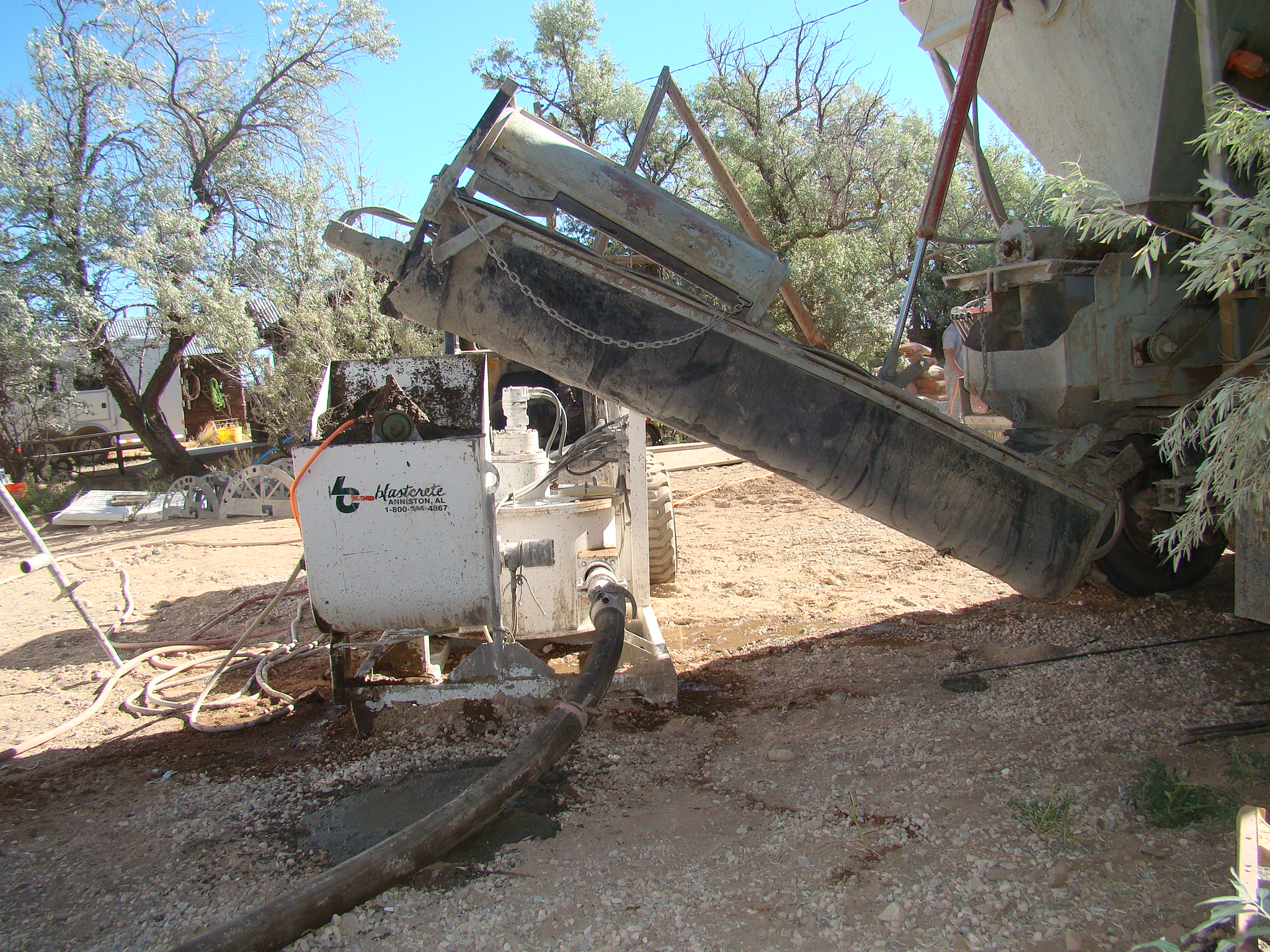

MAS-570™ Type R the shotcrete pump and “auger” end of the Volumetric Mixer are staged and ready for shotcrete application.
